ASS SAVERS WIn WIng Mudguard - Road

ASS SAVERS WIn WIng Mudguard - Road

Regular price $42.95 AUD
Regular price Sale price $42.95 AUD
Sale Sold out
Tax included.
Colour
Ass Savers have yet again rewritten the rules of fender design with the new, ultra-lightweight, clip-on performance mudguard – the radical Win Wing Road Mudguard

The Win Wing Road fits practically any
bike with narrow tyres protecting the rider in even the worst conditions. Ideal for winter training or if you want to add some comfort to your urban ride. The Win Wing won't rattle or jam, and weighing only 64g, you won't even notice it's there

Based on the principal of Tangential Coverage, the Wing Wing catches the spray by shielding the upper rear quarter of the wheel, protecting your critical areas (thighs, butt and back) and drastically increasing your comfort. And when comfort can be had without a weight penalty, that’s what we like to call a “win-wing situation”

Still no convinced? You have never used a mudguard before, so why now? Check out the review here from BIKEPACKING.com

Full backside rider protection from the knee and up
Patent pending Wishbone attachment system
Attaches in seconds to every bike, requires no tools
Ultra-lightweight at 64 grams
Suitable for tire widths up to 38 mm

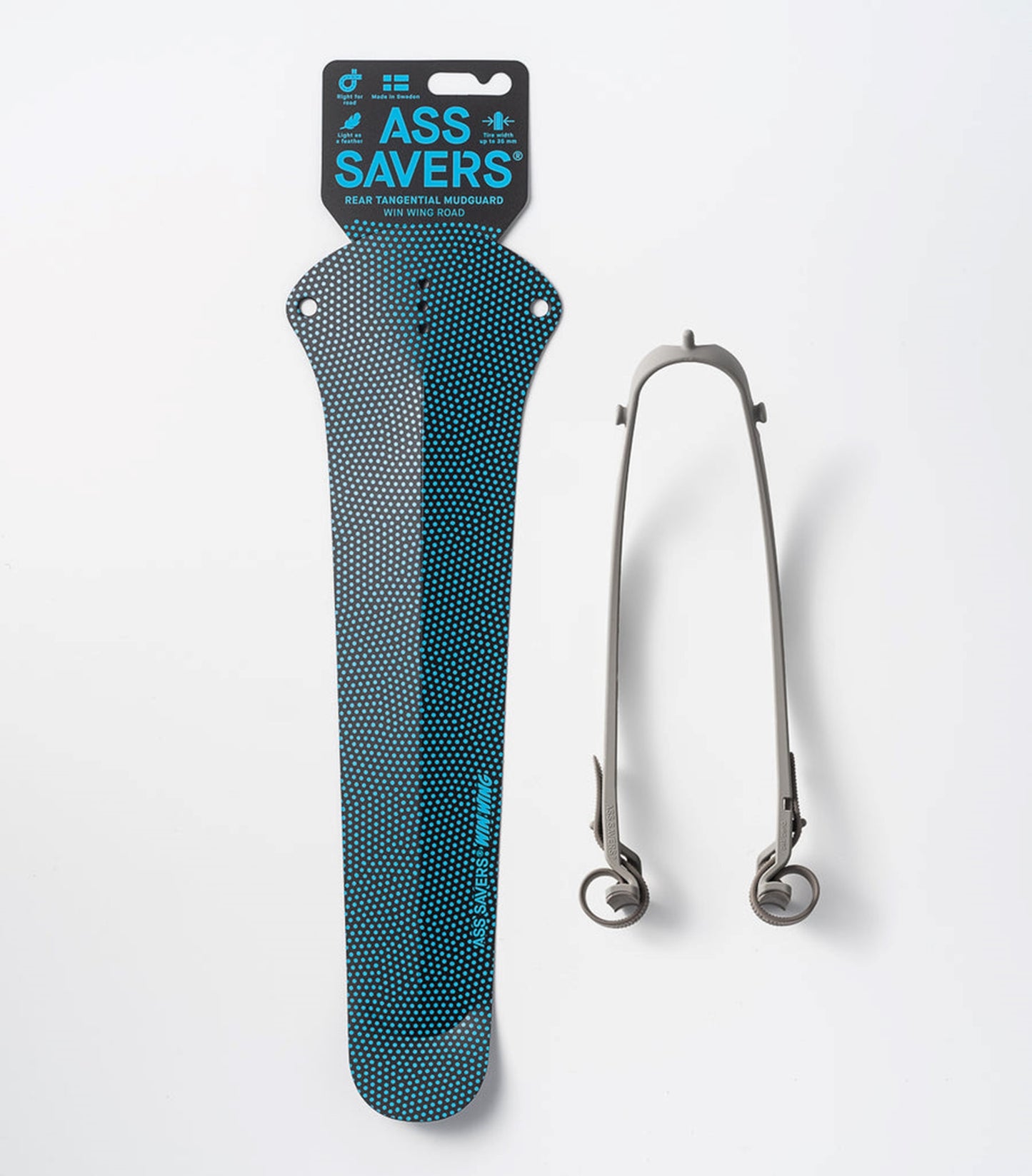

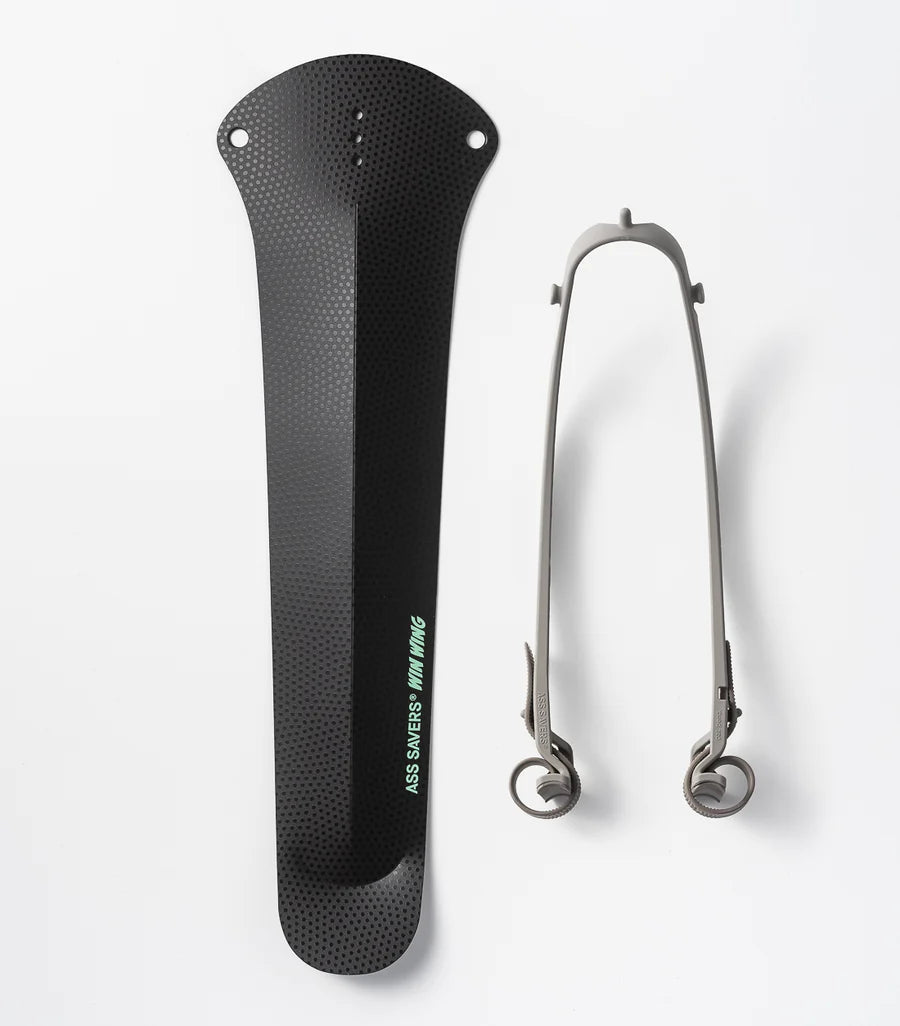

Specifications:

Measures: 375 x 85mm
Weight: 64g
Material: Blade - 0.9 mm PP (Polypropylene),Wishbone holder - glassfiber reinforced PA (Polyamid or Nylon) and Strap - TPU (thermoplastic polyurethane)

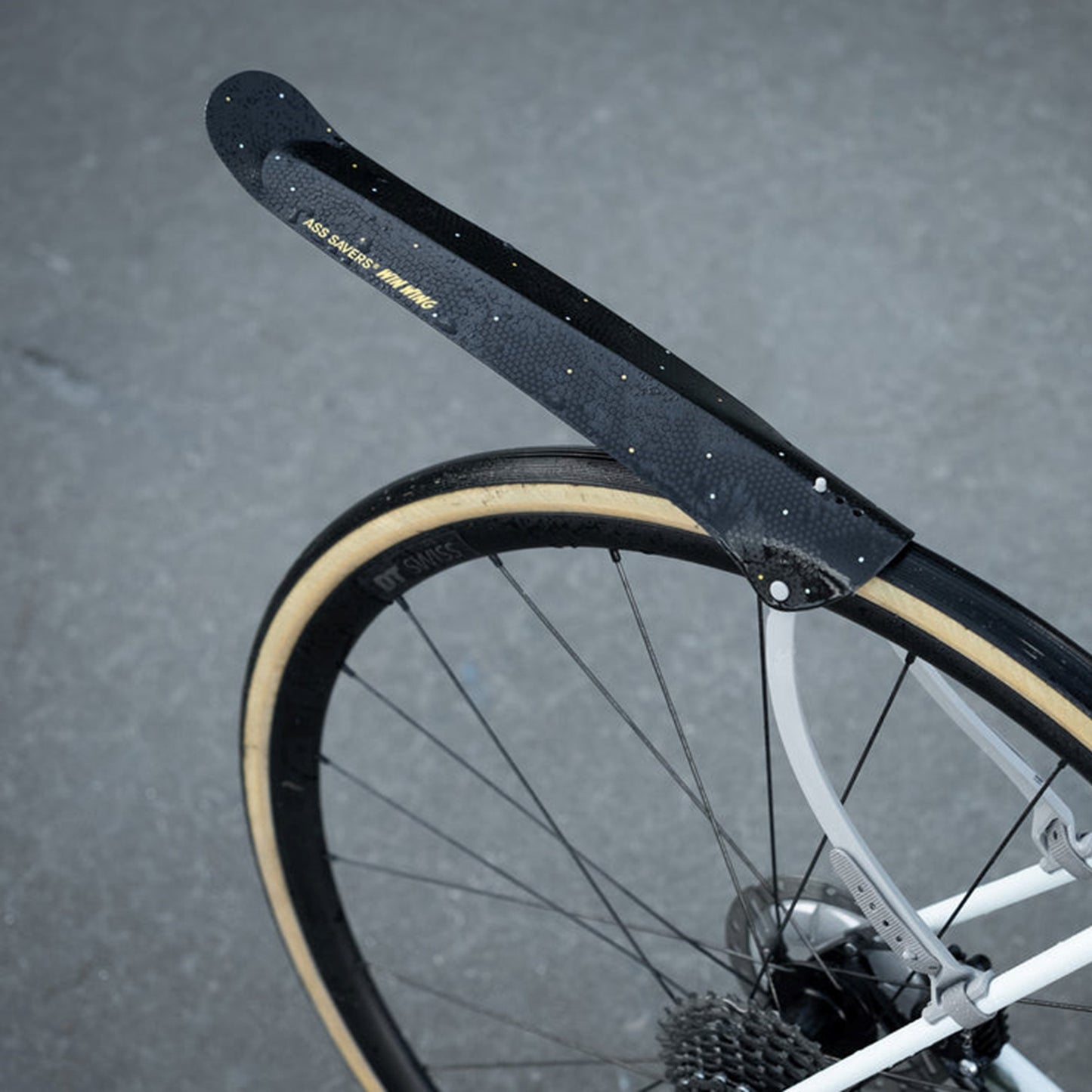

Tangential Coverage
The key to understanding how the Win Wing works lies in physics: water and mud leave the wheel in a straight line from the tangential point of release. By shielding only the upper rear quarter of the wheel, the Win Wing eliminates spray from reaching the critical areas of the rider with a minimum of material

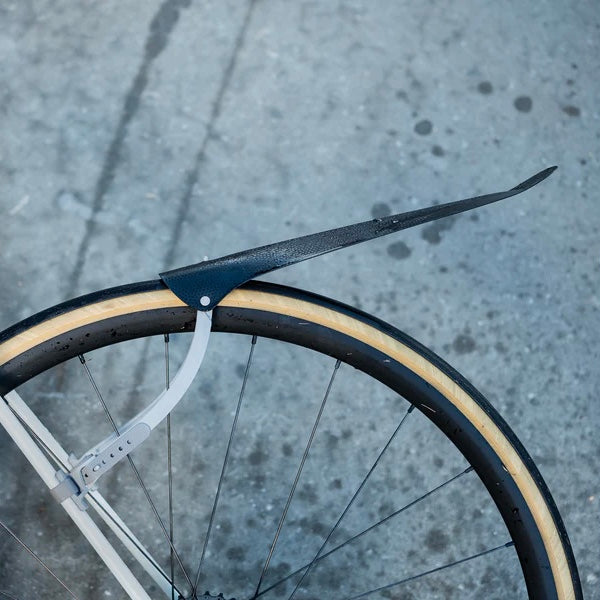

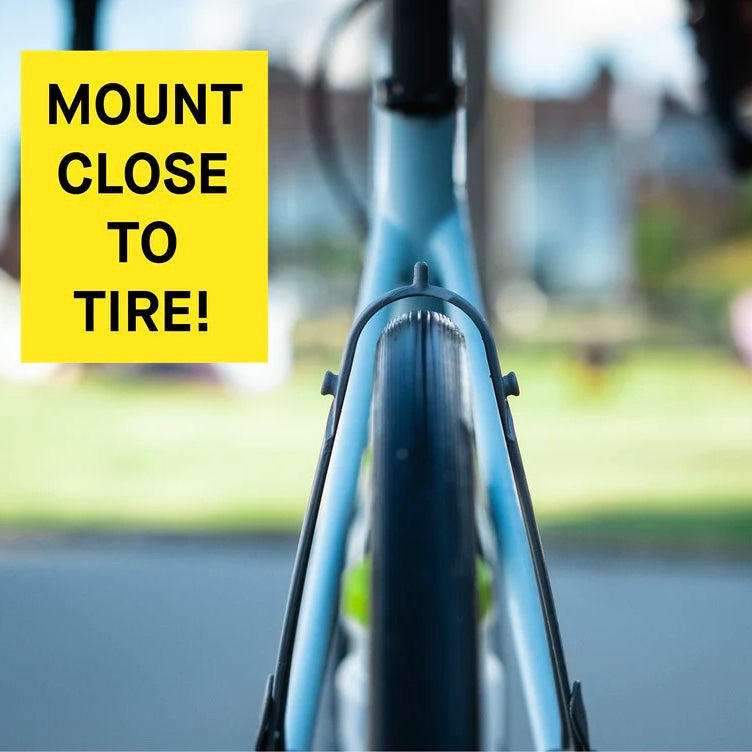

Mount right, mount tight
For the Tangential Coverage to work properly, the mudguard needs to be installed very close to the wheel. Aim for 5-10 mm tire clearance for maximum coverage

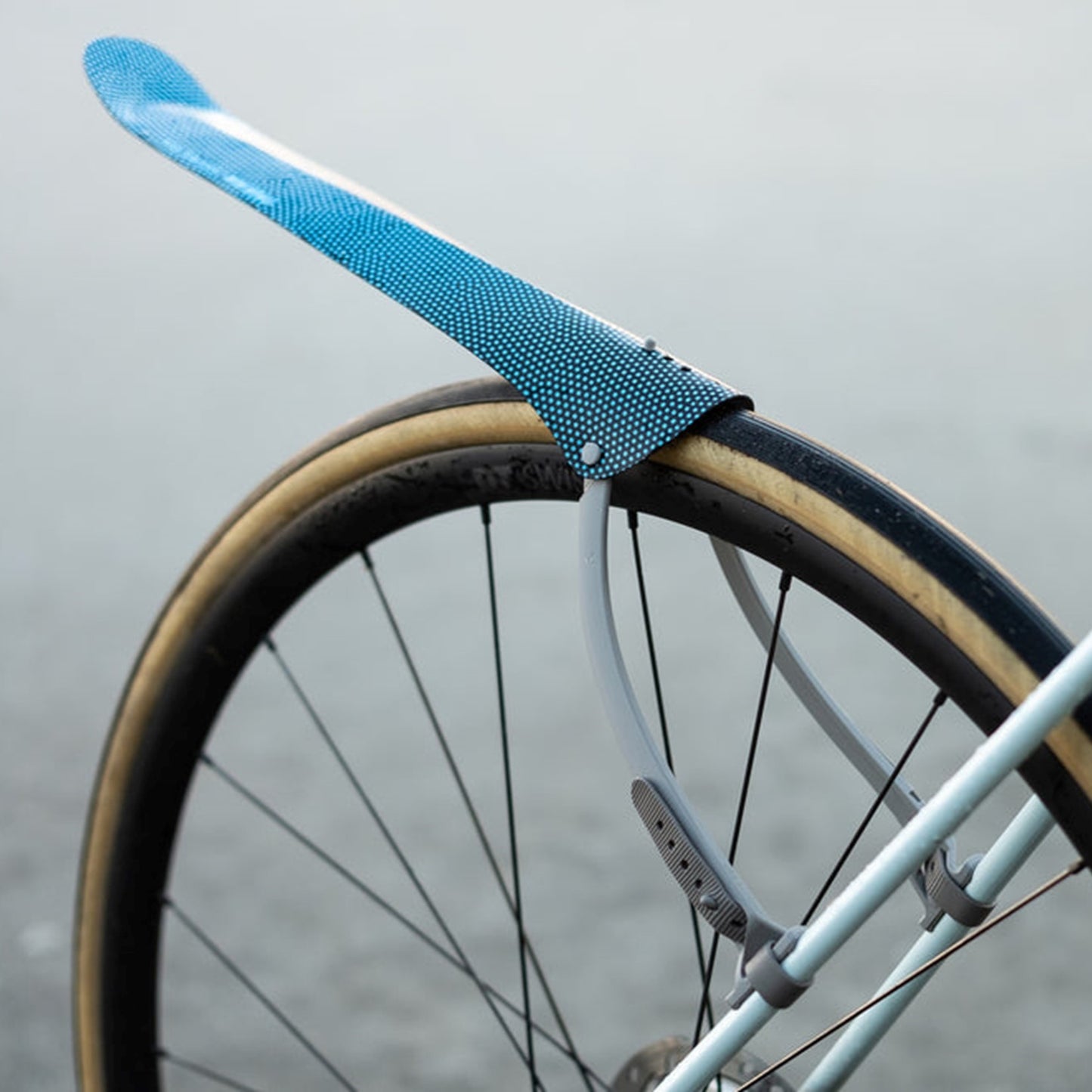

The right angle
Just as important as a tight fit is the angle of the blade. There are three different settings to compensate for the angle of your seat stays. Choose the one that allow a horizontal or a tail-up position. Avoid a tail-down angle as this will reduce  the efficiency of the fender

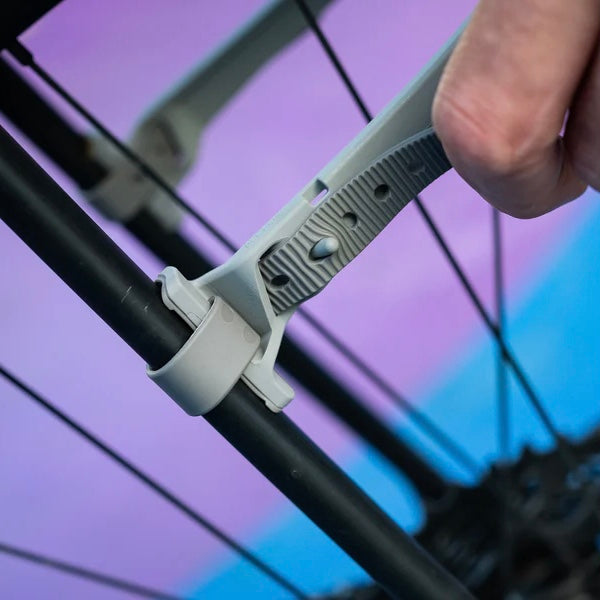

Strap it hard
The straps are made from ultra-tough TPU and should be pulled as tight as you can comfortably do by hand. If you experience that the mudguard is not stable, try to use the next hole in the strap

Anti-Jam
As sturdy as it is, the design of the Win-wing allows it to flex in case of an accident and it's constructed to not jam in case of large chunks of nature get stuck to your wheel

Anti-Theft
If you like to keep it attached to your bike permanently, the Win-Wing can be secured to your bike with a standard zip tie, through a designated slot, making it easier to resist for people with sticky fingers

Reliable
Thanks to it's sophisticated simplicity and careful choice of materials, the Win Wing is virtually indestructible. With only four components (competitors use as much as 40 components) it's not that much that can go wrong. The glassfiber reinforced wishbone holder is both flexible and tough and the rubber straps are virtually indestructible

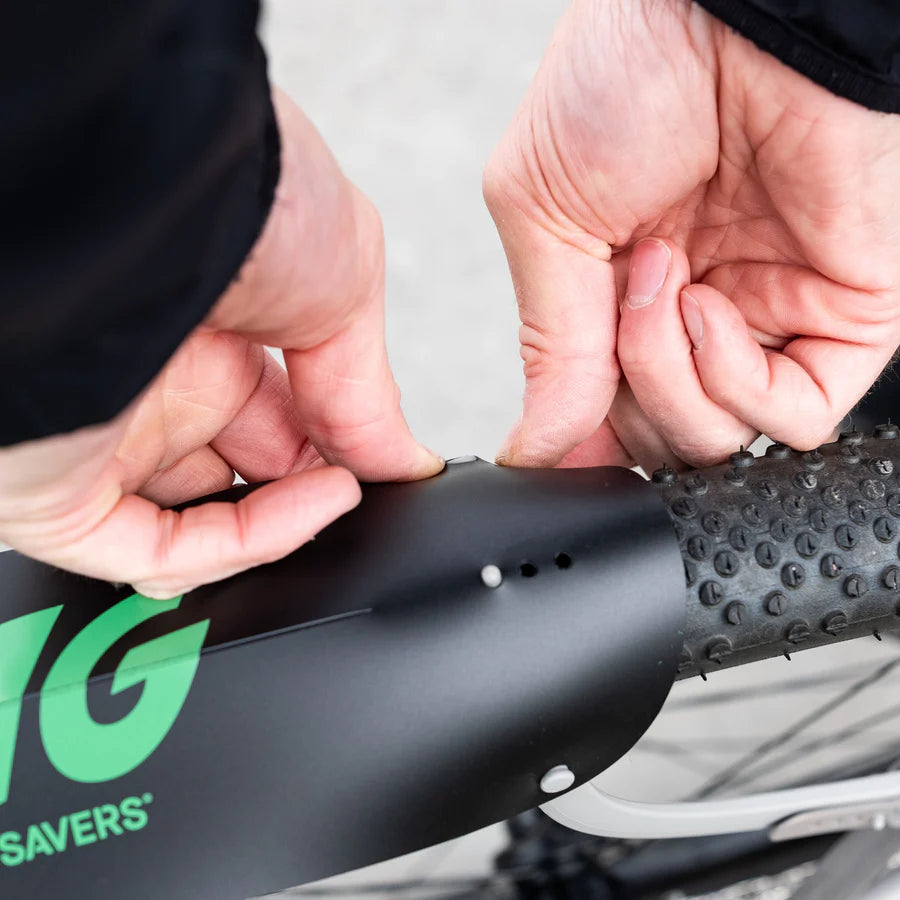

Pre-folding
The secret to transforming a flat piece of plastic into a functioning mudguard lies in the pre-folding prior to use. All the scoring lines have been carefully engineered to achieve locking mechanisms, self centering abilities, spring loading and material endurance. Please take the time to properly read the instructions/see the instruction video to ensure the best performance

Sustainability
The black blade is made from 80% recycled PP and the Win Wing has been designed for efficient shipping and easy recycling. Each component can be purchased separately, making repairing and upgrading convenient. The Win-Wing is 100% Made in Sweden in ISO 14001 certified factories
